CM8826FN Coating Thickness Gauge for Accurate Paint & Coating Measurement
The CM8826FN Coating Thickness Gauge is a versatile measuring instrument developed for professionals who require fast, repeatable and accurate coating thickness measurements on both ferrous and non-ferrous metal substrates.
Using two proven measuring principles — magnetic induction for ferrous materials and eddy current for non-ferrous materials—the instrument enables users to accurately determine the thickness of non-magnetic coatings without damaging the coated surface.
With a measuring range of 0 to 1250μm, the CM8826FN is suitable for measuring:
- Paint coatings
- Powder coatings
- Electroplated coatings
- Galvanised coatings
- Anodised layers
- Protective industrial coatings
- Plastic coatings on metal substrates
The supplied F Probe is designed for measurements on steel and iron, while the N Probe measures coatings on aluminium, copper, brass, stainless steel and other non-ferrous metals.
Designed for field and workshop use, the gauge features a clear LCD display, simple keypad operation and supports both Single and Continuous measurement modes for increased productivity during inspections.
The instrument offers a resolution of 0.1μm for thin coatings below 100μm and 1μm for thicker coatings, ensuring precise measurements across a wide variety of applications.
To help maintain measurement confidence, the CM8826FN includes calibration foils together with ferrous and non-ferrous calibration bases for easy calibration before use.
Ideal for Quality Control and Inspection
Consistent coating thickness is essential for product quality, corrosion protection and compliance with customer specifications.
The CM8826FN enables inspectors, technicians and quality control personnel to quickly verify coating thickness during production, incoming inspection or preventive maintenance, helping reduce costly rework and improve overall quality assurance.
Whether you’re inspecting painted automotive panels, powder-coated fabricated parts or protective coatings on industrial equipment, the CM8826FN provides dependable measurement performance in a portable handheld instrument.
Every unit supplied by us includes a Calibration Verification Report, giving customers additional assurance that the instrument has been verified prior to delivery.
Applications of the CM8826FN Coating Thickness Gauge
The CM8826FN is suitable for a wide range of industries where accurate coating thickness measurement is essential.
- Automotive Inspection
Measure paint thickness on vehicle body panels to identify accident repairs, repainting work, filler application and original factory paint during used car inspections. - Powder Coating Inspection
Verify powder coating thickness on fabricated metal components to ensure compliance with coating specifications and improve product quality. - Industrial Painting
Inspect protective paint coatings on machinery, pipelines, structural steel and industrial equipment to maintain corrosion protection standards. - Manufacturing Quality Control
Perform routine coating thickness checks during production and final quality inspection to minimise defects and maintain consistent product quality. - Electroplating & Surface Finishing
Measure electroplated and surface-treated coatings on metal components used in manufacturing and engineering applications. - Metal Fabrication
Inspect painted and coated fabricated parts before delivery to ensure coating thickness meets customer or project specifications. - Marine & Offshore Maintenance
Evaluate protective coatings applied to steel structures and equipment to help reduce corrosion and extend service life. - Maintenance & Asset Inspection
Monitor coating condition during preventive maintenance programmes for industrial facilities, utilities and infrastructure projects.
Why Buy the CM8826FN from AK Measurement?
- Calibration Verification Report Included
Every CM8826FN supplied by AK Measurement includes a Calibration Verification Report, providing additional confidence that the instrument has been verified before delivery. - Local Singapore Supplier
Purchase with confidence from a trusted Singapore supplier specialising in professional measurement instruments for industrial, engineering, manufacturing and inspection applications. - Product Support
Need assistance selecting the right coating thickness gauge? Our team can recommend the most suitable instrument based on your application and measurement requirements. - Quality Measurement Instruments
We carefully select reliable measuring instruments that offer excellent performance and value for professional users. - Fast Local Response
Whether you require product recommendations, quotations or after-sales support, our team is ready to assist with prompt and responsive service.

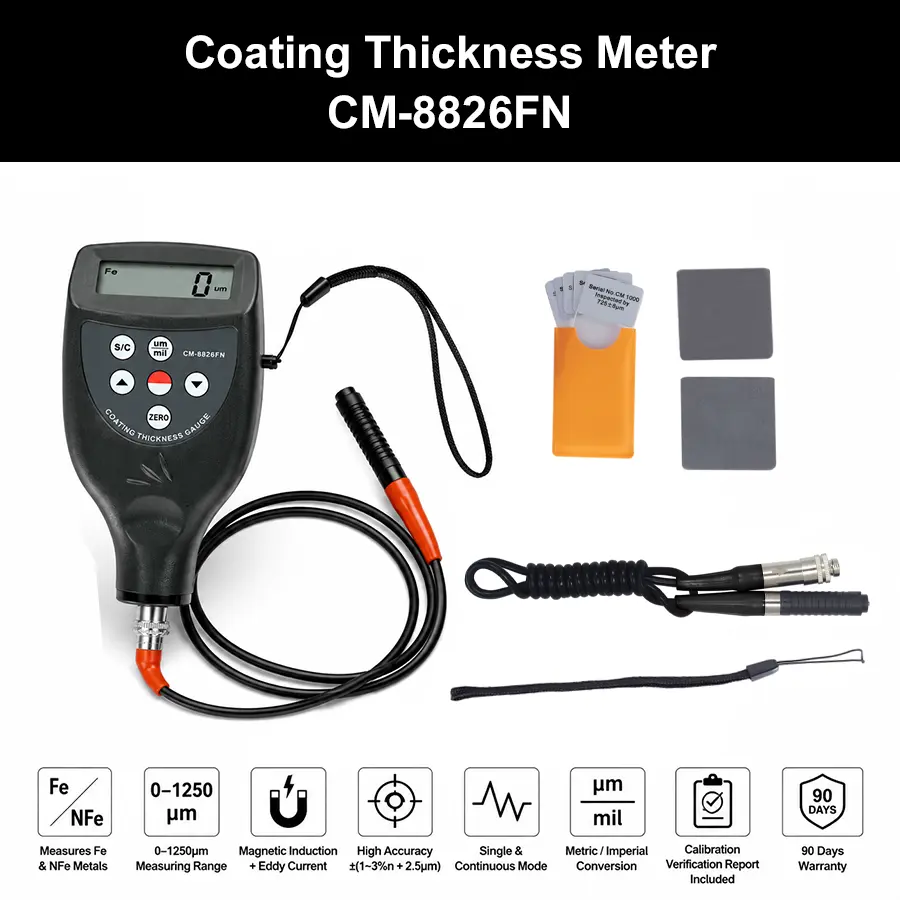

What’s Included?
Each CM8826FN Coating Thickness Gauge package includes:
- CM8826FN Main Unit
- F Probe (Ferrous)
- N Probe (Non-Ferrous)
- Calibration Foils
- Iron (Fe) Calibration Base
- Aluminium (NFe) Calibration Base
- PVC Carrying Case
- User Manual
- 4 × AAA Batteries
- Calibration Verification Report
Product Specifications
| Model | CM8826FN |
|---|---|
| Product Type | Coating Thickness Gauge |
| Measurement Principle | Magnetic Induction (F) & Eddy Current (NF) |
| Substrate | Ferrous (Fe) & Non-Ferrous (NFe) |
| Measuring Range | 0 – 1250 μm (0 – 50 mil) |
| Resolution | 0.1 μm (0 – 99.9 μm) 1 μm (100 μm and above) |
| Accuracy | ±(1~3%n + 2.5 μm) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Minimum Curvature Radius | Convex: 1.5 mm Concave: 25 mm |
| Measurement Units | μm / mil |
| Measurement Modes | Single & Continuous |
| Display | LCD Display |
| Calibration | Zero Calibration & Multi-Point Calibration |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Less than 95% RH |
| Power Supply | 4 × AAA Batteries |
| Dimensions | 161 × 69 × 32 mm |
| Weight | Approximately 260 g (excluding batteries) |
| Warranty | 90 Days |
| Included Accessories | Main Unit, F Probe, N Probe, Calibration Foils, Iron Calibration Base, Aluminium Calibration Base, PVC Carrying Case, User Manual, 4 × AAA Batteries, Calibration Verification Report |
Frequently Asked Questions
- What can the CM8826FN Coating Thickness Gauge measure?
The CM8826FN is designed to measure the thickness of non-magnetic coatings applied to both ferrous (steel and iron) and non-ferrous (aluminium, brass, copper and similar metals) substrates. It is suitable for measuring paint, powder coating, electroplating, anodising, galvanising and other protective coatings. - What is the difference between the F Probe and N Probe?
The F Probe uses magnetic induction to measure coatings on ferrous (iron and steel) substrates.
The N Probe uses eddy current technology to measure non-conductive coatings on non-ferrous metals such as aluminium, brass and copper. - Is the CM8826FN suitable for measuring automotive paint thickness?
Yes. The CM8826FN is commonly used for measuring paint thickness on vehicle body panels. It can help identify repaired panels, repainting work and variations in paint thickness during vehicle inspections. - Can this coating thickness gauge measure powder coating?
Yes. The CM8826FN is suitable for measuring powder coating thickness on steel and aluminium components, making it ideal for powder coating inspection and quality control. - What measuring range does the CM8826FN offer?
The instrument measures coating thickness from 0 to 1250 μm (0 to 50 mil), making it suitable for most industrial paint and coating applications. - Does the CM8826FN require calibration?
Yes. The gauge can be calibrated using the supplied calibration foils together with the ferrous and non-ferrous calibration bases to ensure accurate measurements. - Does the CM8826FN include a calibration certificate?
Every unit supplied by AK Measurement includes a Calibration Verification Report for added confidence before the instrument is delivered. - What industries commonly use this coating thickness gauge?
The CM8826FN is widely used in automotive inspection, manufacturing, powder coating, metal fabrication, industrial painting, galvanising, engineering, quality control and maintenance applications. - Can the CM8826FN be used for measuring coating thickness on concrete or other non-metal surface?
No. The CM8826FN is specifically designed to measure the thickness of non-magnetic coatings on metal substrates using magnetic induction (F) and eddy current (NFe) measuring principles.
It can measure coatings such as paint, powder coating, plating and anodising applied to ferrous (steel and iron) and non-ferrous metals (such as aluminium, brass and copper).
It is not suitable for measuring coating thickness on concrete, wood, plastic, glass, composite materials or other non-metallic surfaces, as these materials do not provide the metal substrate required for the measuring principles to function.
