Description

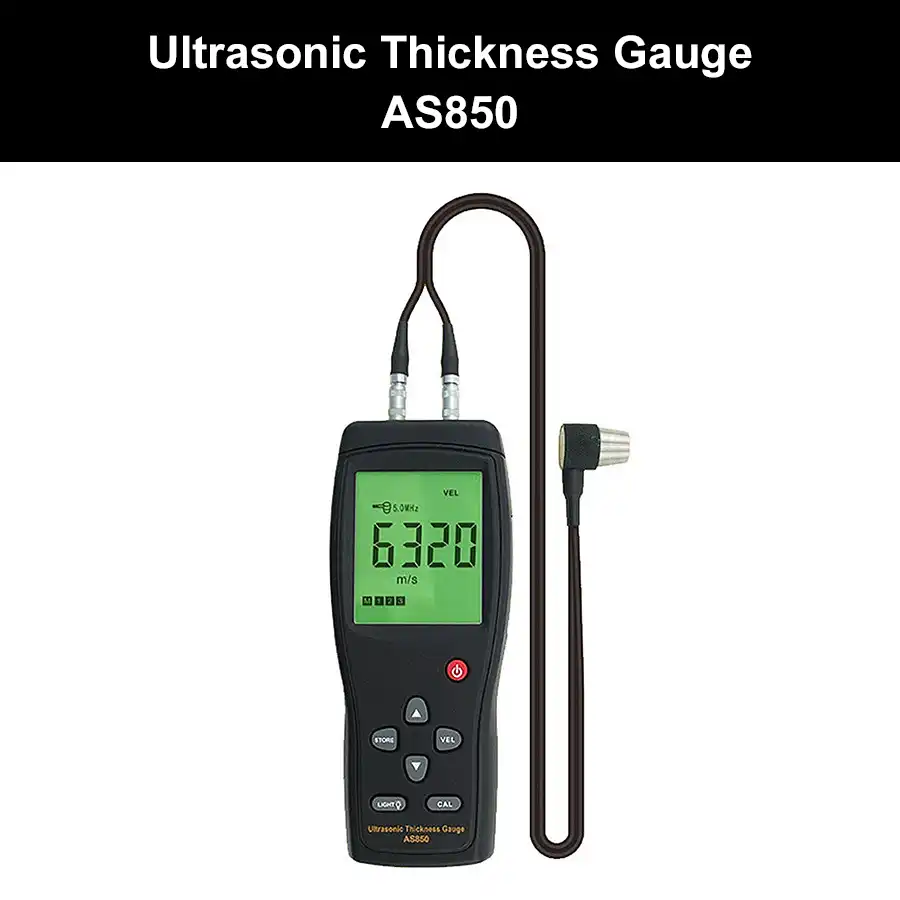

The AS850 Ultrasonic Thickness Gauge is a compact and intelligent handheld thickness measuring instrument designed for fast, accurate, and non-destructive thickness measurement of various industrial materials. Utilizing advanced ultrasonic measurement technology and microprocessor-based control, the AS850 enables users to determine material thickness from a single accessible surface without causing damage to the test piece.
Suitable for metals, plastics, ceramics, glass, and other materials that efficiently transmit ultrasonic waves, the AS850 is widely used in manufacturing facilities, metal fabrication workshops, maintenance departments, inspection companies, and quality assurance applications.
One of the primary advantages of ultrasonic thickness measurement is the ability to monitor material loss due to corrosion, erosion, wear, or prolonged service exposure. This makes the AS850 particularly useful for inspecting tanks, pressure vessels, pipes, structural components, machinery parts, and fabricated metal products where material integrity is critical.
To simplify operation, the AS850 includes 12 preset sound velocity settings for commonly measured materials. Users can quickly select the appropriate material for accurate thickness measurement. For materials not included in the preset list, the sound velocity can be manually adjusted, providing flexibility across a wider range of applications.
The instrument also features automatic calibration and auto linear compensation technology, helping improve measurement accuracy and transducer performance. A supplied 4mm sample block allows users to perform calibration checks whenever required, ensuring measurement confidence before inspection work begins.
With a measurement range of 1.2mm to 225mm (steel), storage for up to 10 measurement readings, coupling indication, low battery warning, and automatic power-off functionality, the AS850 delivers dependable performance for both field and workshop use.
Key Applications
- Metal sheet and plate thickness measurement
- Pipe wall thickness inspection
- Pressure vessel inspection
- Corrosion monitoring programs
- Tank thickness surveys
- Manufacturing quality control
- Metal fabrication inspection
- Machinery maintenance and servicing
- Incoming material verification
- Glass, ceramic, and plastic thickness measurement
- Non-destructive testing (NDT) applications
Why Buy From Us
- Local Support
Receive responsive pre-sales and after-sales support from an experienced supplier of measurement instruments. - Calibration Certificate Included
Each AS850 Ultrasonic Thickness Gauge is supplied with a calibration certificate for added confidence. - Fast Delivery
Ready stock is available for prompt delivery across Singapore and the region. - Application Assistance
Not sure if this model is suitable for your application? Contact us for technical recommendations before purchase. - 90 Days Warranty
Enjoy peace of mind with our 90-day warranty coverage against manufacturing defects.
Product Specifications
| Model | AS850 |
| Measuring Range | 1.2 ~ 225 mm (Steel) |
| Accuracy | ±(1%H + 0.1 mm) |
| Resolution | 0.1 mm |
| Sound Velocity Range | 1000 ~ 9999 m/s |
| Transducer Frequency | 5 MHz |
| Transducer Size | 10 mm |
| Minimum Tube Diameter | Ø20 × 3 mm (Steel) |
| Auto Zero Calibration | Yes |
| Auto Linear Compensation | Yes |
| Coupling Indicator | Yes |
| Memory Function | Stores up to 10 Readings |
| Preset Material Sound Velocity | 12 Materials |
| Manual Sound Velocity Adjustment | Yes |
| Sound Velocity Measurement | Yes |
| Battery Indicator | Yes |
| Auto Power Off | Yes |
| Operating Temperature | 0°C ~ 40°C |

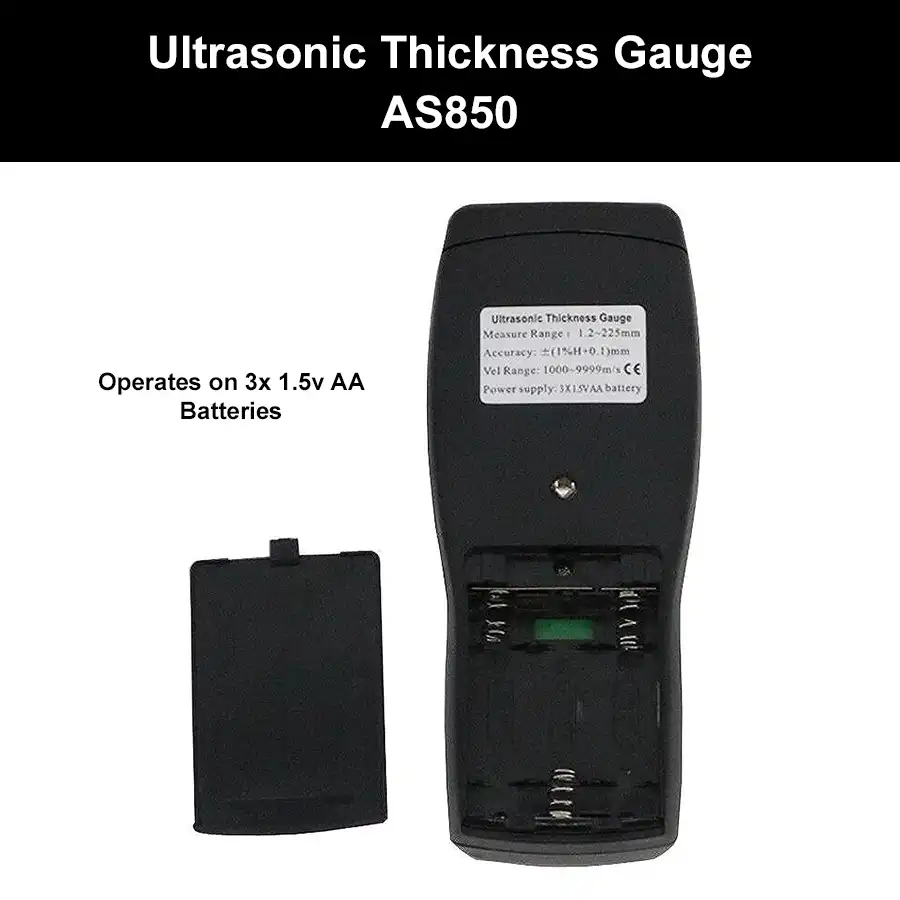

| Power Supply | 3 × 1.5V AA Batteries |
| Dimensions | 145 × 70 × 28 mm |
| Weight | 210 g |

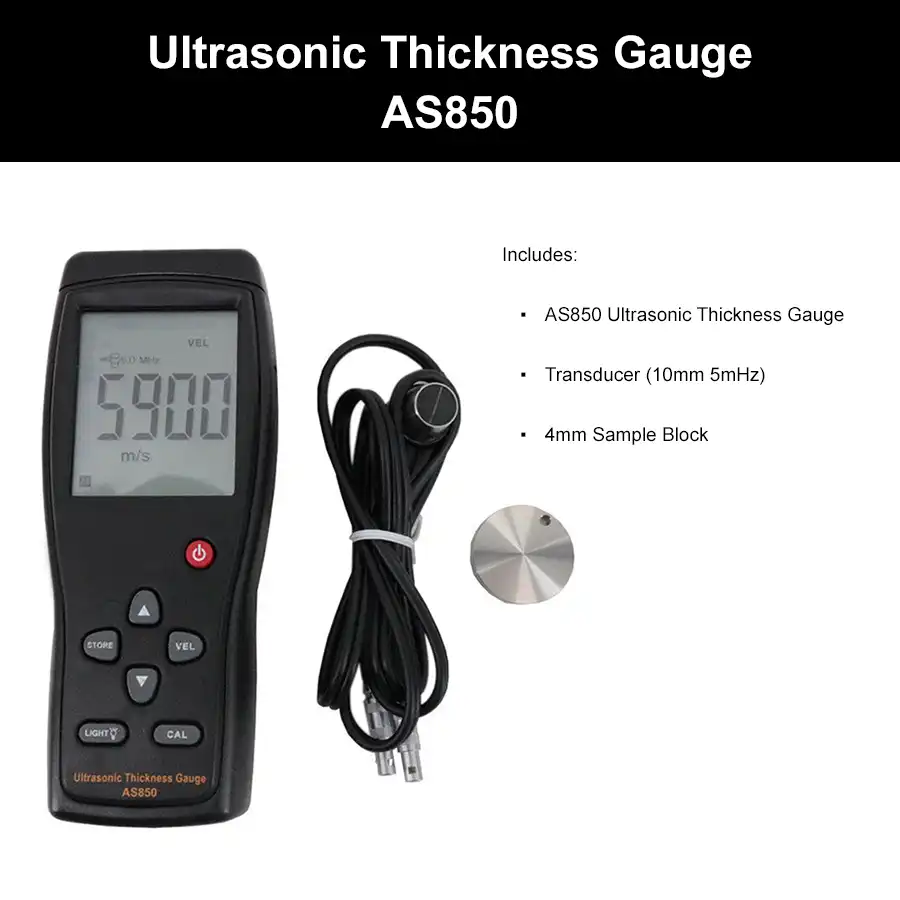

Standard Accessories
| AS850 Ultrasonic Thickness Gauge | 1 pc |
| 10 mm 5 MHz Transducer | 1 pc |
| Coupling Agent | 1 pc |
| 4 mm Calibration Block | 1 pc |
| 1.5V AA Batteries | 3 pcs |
| Calibration Certificate | 1 pc |
| Instruction Manual | 1 pc |
| PVC Carrying Case | 1 pc |
