Description
The VM6360 Vibration Meter is a versatile handheld instrument developed for periodic vibration measurements and machine condition monitoring in industrial environments. Designed in accordance with ISO 2954 guidelines for vibration measurement, it provides a practical and cost-effective solution for maintenance personnel, engineers, reliability teams, and service technicians.
Vibration is one of the most effective indicators of machine health. Excessive vibration often signals developing faults such as imbalance, shaft misalignment, bearing wear, looseness, resonance, or mechanical deterioration. By monitoring vibration levels regularly, maintenance teams can identify issues early and schedule corrective actions before equipment failure occurs.
The VM6360 measures three essential vibration parameters:
- Velocity (True RMS)
- Acceleration (Equivalent Peak)
- Displacement (Equivalent Peak-to-Peak)
In addition, the instrument includes RPM measurement capability, allowing users to verify machine rotational speed alongside vibration readings.

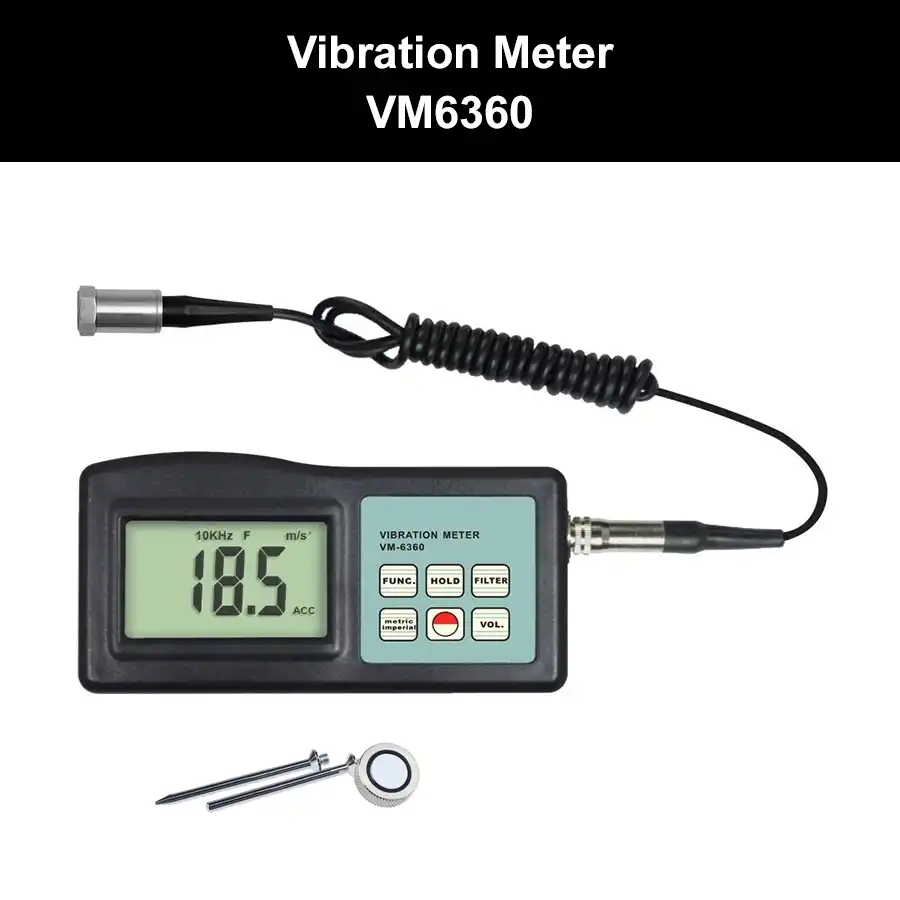

For improved measurement consistency, the supplied piezoelectric accelerometer can be mounted using the included rare-earth magnetic base. This helps ensure reliable sensor positioning and repeatable readings across inspections.
The wide frequency response of up to 10kHz enables the VM6360 to detect both low-frequency structural vibration and higher-frequency vibration associated with bearing defects and mechanical wear. Optional headphones may also be connected, allowing the meter to function as a simple electronic stethoscope for bearing condition assessment.
Compact, lightweight, and easy to operate, the VM6360 is an excellent solution for routine maintenance inspections, machinery commissioning, troubleshooting, and predictive maintenance programs.
Typical Applications
The VM6360 Vibration Meter is suitable for:
- Electric motor vibration monitoring
- Pump condition monitoring
- Fan balancing and maintenance
- Compressor vibration inspection
- Gearbox vibration analysis
- Bearing condition monitoring
- Rotating machinery diagnostics
- Predictive maintenance programs
- Production equipment inspections
- Quality control and commissioning checks
- Machinery troubleshooting
- Maintenance service contractors
Why Buy From Us
- Quality Assured
Every VM6360 Vibration Meter is supplied with a calibration certificate for added confidence in measurement accuracy. - Local Singapore Supplier
Purchase from a trusted Singapore supplier specialising in professional measurement instruments and testing equipment. - Technical Support
Our team can assist in selecting suitable vibration monitoring instruments based on your application requirements. - Fast Delivery
Ready stock available for prompt delivery across Singapore and overseas. - Warranty Coverage
Supplied with 90 Days Warranty against manufacturing defects. - Complete Package
Includes accelerometer, magnetic base, probes, carrying case, batteries, calibration certificate, and user manual.
Package Contents
- VM6360 Vibration Meter x 1
- Piezoelectric Accelerometer x 1
- Rare Earth Magnetic Base x 1
- Cone Probe x 1
- Ball Probe x 1
- Carrying Case x 1
- User Manual x 1
- Calibration Certificate x 1
- AAA Batteries x 4
Product Specifications
| Model | VM6360 |
| Standard | ISO 2954 |

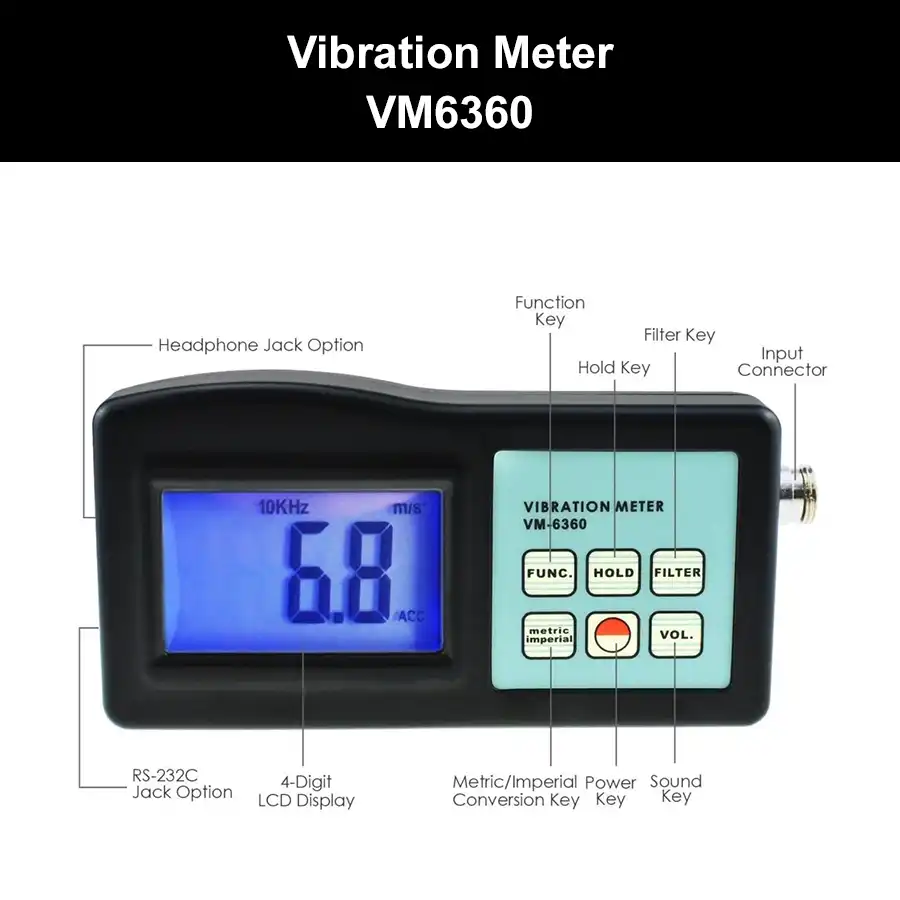

| Display | 4-digit LCD, 18mm digit height |
| Sensor Type | Piezoelectric Accelerometer |
| Parameters Measured | Velocity, Acceleration, Displacement, RPM and Frequency |
| Velocity Range | 0.01 ~ 400.0 mm/s (True RMS) |
| Acceleration Range | 0.1 ~ 400 m/s² (Equivalent Peak) |
| Displacement Range | 0.001 ~ 4.000 mm (Equivalent Peak-to-Peak) |
| RPM Range | 60 ~ 99,990 r/min |
| Frequency Range | 1 ~ 20 kHz |
| Acceleration Frequency Response | 10 Hz ~ 10 kHz |
| Velocity Frequency Response | 10 Hz ~ 1 kHz |
| Displacement Frequency Response | 10 Hz ~ 1 kHz |
| Accuracy | ±5% of Reading + 2 Digits |
| Unit Conversion | Metric / Imperial |
| PC Interface | RS232C |
| AC Output | 2.0V Peak Full Scale (Load Resistance > 10kΩ) |
| Power Supply | 4 × 1.5V AAA Batteries (UM-4) |
| Auto Power Off | After approximately 5 minutes of inactivity |
| Operating Temperature | 0 ~ 50°C |
| Operating Humidity | <90% RH |
| Dimensions | 124 × 62 × 30 mm |
| Weight | 120g (excluding batteries) |
| Standard Accessories | VM6360 Main Unit, Piezoelectric Accelerometer, Rare Earth Magnet, Cone Probe, Ball Probe, Carrying Case, User Manual, Calibration Certificate, Batteries |

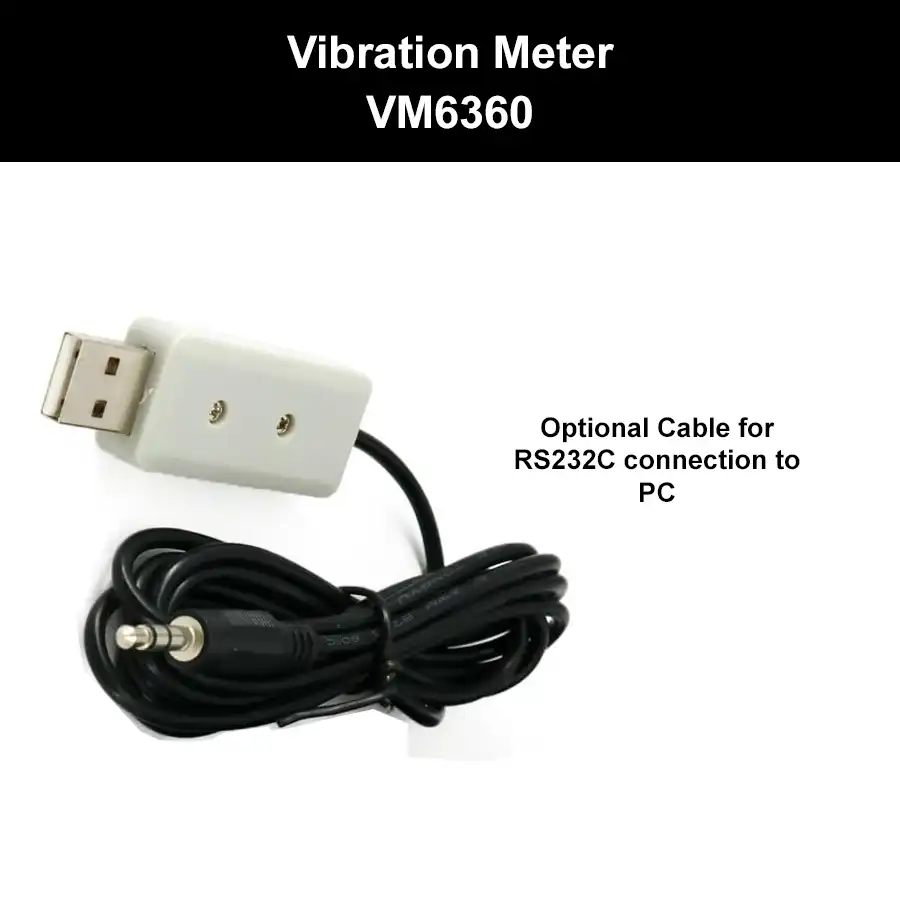

| Optional Accessories | Headphones (Electronic Stethoscope), RS232 Cable & Software, Bluetooth Adapter |
| Warranty | 90 Days |
